Bellow Sealed Globe Valve 800Lb

Product List

It's our product catalog

Gate Valve

Contact Us

Below any way all may contact us

Address: No.5,BaiLu 2 village,Yushan town,Kunshan Economic & Technological Development Zone,Suzhou Kunshan city,Jiangsu Province China
Tel:0086-0512-57489052
Mobile No:0086-13912665842
fax:00886-0512-57923498
Email:sales08@valve-shv.com
Skype:valve-shv
WhatsApp & WeChat: +8613912665842
Contact Person: Mr.Wang

Contact me with MSN

Products>Bellow Sealed Globe Valve 800Lb

Features:

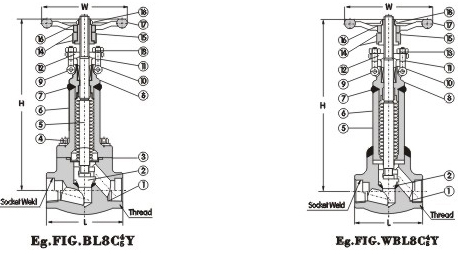

Bellow Sealed Globe Valve 800Lb

Standard Material Specifications

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTm
NO.	Part Name	Type A105	Type A182 F22	Type A182 F304	Type A182 F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Disc	A276 420	A276 304	A276 304(L)	A276 316(L)
3	Gasket	Corrugated SS + graphite		SS + PTFE
4	Bonnet Bolt	A193 B7	A193 B16	A193 B8	A193 B8M
5	Stem	A182 F6	A182 F304	A182 F304(L)	A182 F316(L)
6	Bellow Pipe	SS
7	Bonnet	A105	A182 F22	A182 F604(L)	A182 F316(L)
8	Stem Packing	Flexible Graphite		PTFE
9	Pin	A276 420		A182 F304
10	Gland	A276 420		A182 F304
11	Gland Eyebolt	A193 B7	A193 B16	A193 B8	A193 B8M
12	Gland Flange	A216 WCB		A351 CF8
13	Gland Nut	A194 2H	A194 4	A194 8	A194 8M
14	Bearing Washer	SS
15	Yoke Nut	A276 410
16	Nameplate	SS
17	Handwheel	A197
18	H.W.Nut	A194 2H	A194 4	A194 8	A194 8M
Suitable Medium		W.O.G.etc	W.O.G.etc	HNO3,CH3OOH etc
Suitable Temperature		-29~425	-29~550	-29~180

Note: Other materials are available upon request.

Dimensions (mm) and Weights (Kg)

NPS	Conv.	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
NPS	Full		3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"
L		79	79	92	111	120	152	172
H(OPEN)		220	220	225	244	321	321	347
W		100	100	100	125	160	160	180
Weights	Bolted	3.2	3.0	4.8	7.9	11.0	16.8	25.2
Weights	Welded	3.0	2.8	4.8	7.0	9.6	13.5	20.2

Safety Valve	Globe Valve	Check Valve	Ball Valve	Forged Steel Valve	Gate Valve
Butterfly Valve	Plug Valve
