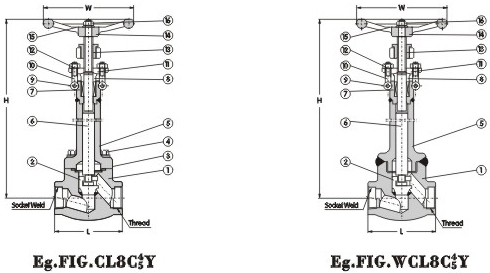

Cryogenic Globe Valve 800Lb
Standard Material Specifications
| NO. | Part Name | AS to ASTM | SS to ASTM | ||
| Type A350 LF2 | Type A350 LF3 | Type A182 F304 | Type A182 F316(L) | ||
| 1 | Body | A350 LF2 | A350 LF3 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 410 | A276 304(L) | A276 304(L) | A276 316(L) |
| 3 | Bonnet | A350 LF2 | A350 LF3 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | Corrugated SS + graphite | SS + PTFE | ||
| 5 | Bold Nut | A193 B7 | A193 B7 | A193 B8 | A193 B8M |
| 6 | Stem | A182 F6 | A182 F6 | A182 F304(L) | A182 F316(L) |
| 7 | Stem Packing | Flexible graphite | PTFE | ||
| 8 | Gland | A276 420 | A182 F304 | ||
| 9 | Pin | A276 420 | A182 F304 | ||
| 10 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 11 | Gland Flange | A216 WCB | A351 CF8 | ||
| 12 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 410 | |||
| 14 | Handwheel | A197 | |||
| 15 | Nameplate | SS | |||
| 16 | H.W.Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| Suitable Temperature | 40 | 101 | 196 | ||
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg)
|
NPS
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
|
|
L
|
79
|
92
|
111
|
120
|
120
|
172
|
200
|
|
|
H(OPEN)
|
333
|
337
|
370
|
480
|
410
|
474
|
546
|
|
|
W
|
100
|
100
|
125
|
160
|
160
|
180
|
200
|
|
|
Weights
|
Bolted
|
5.2
|
7.2
|
10.9
|
13.5
|
15.2
|
19.8
|
29.0
|
|
Welded
|
4.8
|
6.5
|
9.5
|
11.5
|
13.1
|
17.5
|
26.8
|
|
