Products>Extended Body Gate Valve 800Lb

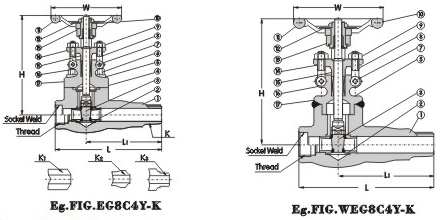

Extended Body Gate Valve 800Lb
Features:

Extended Body Gate Valve 800Lb



The Specific Connection Code

Connection Code
K
K1
K2
K3
Screwed Weld
Inclined End
A Full Strength End
Socket Weld End



Standard Material Specifications

NO.
Part Name
CS to ASTM
AS to ASTM
SS to ASTM
Type A105
Type F22
Type F304(L)
Type F316(L)
1
Body
A105
A182 F22
A182 F304(L)
A182 F316(L)
2
Seat Ring
A276 420
A276 304
A276 304(L)
A276 316(L)
3
Wedge
A276 410 & 403
A182 F304
A182 F304(L)
A182 F316(L)
4
Gasket
Corrugated SS + graphite
SS + PTFE
5
Stem
A182 F6
A182 F304
A182 F304(L)
A182 F316(L)
6
Bonnet Bolt
A193 B7
A193 B16
A193 B8
A193 B8M
7
Pin
A276 420
A276 304
8
Gland Eyebolt
A193 B7
A193 B16
A193 B8
A193 B8M
9
Gland Nut
A194 2H
A194 4
A194 8
A194 8M
10
Nameplate
SS
11
Handwheel
A197
12
H.W.Lock Nut
A194 2H
A194 4
A194 8
A194 8M
13
Yoke Nut
A276 420
14
Gland Flange
A105
A182 F11
A182 F304(L)
A182 F316(L)
15
Gland
A276 410
A182 F304(L)
A182 F316(L)
16
Stem Packing
Flexible Graphite
PTFE
17
Bonnet
A105
A182 F22
A182 F304(L)
A182 F316(L)
Suitable Medium
W.O.G.etc
W.O.G.etc
HNO3CH3OOH etc
Suitable Temperature
-29~425
-29~550
-29~180

Note: Other materials are available upon request.



Dimensions (mm) and Weights (Kg)

NPS
Conv.
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
Full

3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
L1
107.5
107.5
107.5
120
127
127
152
L
147
147
153.5
175.5
187
187
222
H(OPEN)
158
158
169
197
236
246
283
W
100
100
100
125
160
160
180
Weights
Bolted
3.1
2.9
3.4
5.5
7.8
8.3
13.4
Welded
2.8
2.6
3.1
5.1
7.4
7.6
12.1
