Products>Flanged End Pressure Seal Gate Valve 900Lb~2500Lb

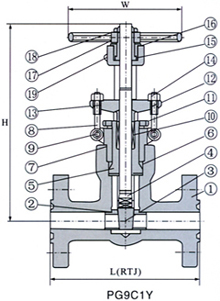

Flanged End Pressure Seal Gate Valve 900Lb~2500Lb
Features:

Flanged End Pressure Seal Gate Valve 900Lb~2500Lb



Standard Material Specifications

NO.
Part Name
CS to ASTM
AS to ASTM
SS to ASTM
Type A105
Type F22
Type F304(L)
Type F316(L)
1
Body
A105
A182 F22
A182 F304(L)
A182 F316(L)
2
Seat
A276 420
A276 304
A276 304(L)
A276 316(L)
3
Wedge
A276 410 & 430
a182 F304
A182 F304(L)
A182 F316(L)
4
Stem
A182 F6
A182 F304
A182 F304(L)
A182 F316(L)
5
Pressure Seat
A105
A182 F304
A182 F304(L)
F316(L)
6
Pressure Ring
A276 304L
A276 316L
7
Bonnet
A105
A182 F22
A182 F304(L)
A182 F316(L)
8
Gland Eyebolt
A193 B7
A193 B16
A193 B8
A193 B8M
9
Pin
A276 420
A182 F304
10
Stem Packing
Flexible Graphite
PTFE
11
P.S.Lock Nut
A194 2H
A194 4
A194 8
A194 8M
12
Gland
A276 F420
A182 F304
13
Gland Flange
A216 WCB
A351 CF8
14
Nut
A194 2H
A194 4
A194 8
A194 8M
15
Yoke Nut
A276-410
16
Retaining Nut
A194 2H
A194 4
A194 8
A194 8M
17
Handwheel
A197
18
H.W.Lock Nut
A194 2H
A194 4
A194 8
A194 8M
19
Oil Cup
Brass
Suitable Medium
W.O.G.etc
W.O.G.etc
HNO3,CH3OOH etc
Suitable Temperature
-29~425
-29~550
-29~180

Note: Other materials are available upon request.



Dimensions (mm) and Weights (Kg)

NPS
1/2"
3/4"
1"
1/4"
1-1/2"
2"
L(RTJ)
900Lb 1500Lb
216
229
254
279
305
368
2500Lb
264
273
308
349
384
451
H(OPEN)
900Lb 150Lb
216
250
270
320
350
445
2500Lb
321
321
321
373
406
495
W
160
160
180
200
250
280
Weights
900Lb 1500Lb
19.6
21.5
25.7
37.8
48.5
99.8
2500Lb
21.5
24.7
30.4
48.1
58.1
130.0
