Products>DIN F1 Globe Valve

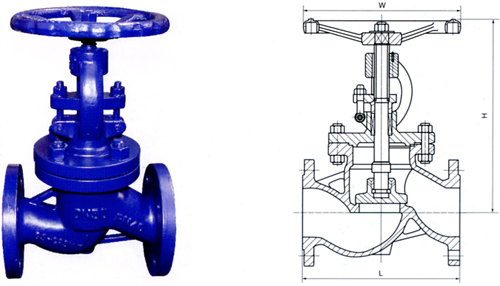

DIN F1 Globe Valve
Features:
DIN F1 GLOBE VALVE
Technical specificastion

 Structural Formation
BB-BG-OS & Y
Driving Manner
Hand-Operated
Electric-Actuated
Design Standard
DIN3356
Face to Face
DIN3202
Flange Ends
DIN2543-2545
Test & Inspection
DIN3230
Notes:The size of serial,valve connecting flange can be design according to customers reguirment.
Products performance specification

Nominal Pressure
(Mpa)
Shell Test(Mpa)
Sealing Test(Mpa)
Suitable Temp(oC)
Suitable Medium
1.6
2.4
1.76
-110~600 oC
Water Oil & Gas
2.5
3.75
2.75
4.0
6.0
4.4
6.4
9.6
7.04

Main Dimensions                                                                                                                               unit:mm

 Pressure
(Mpa)
PN 1.6 Mpa
Size
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
1100
H
240
260
276
285
300
305
354
402
437
496
541
699
815
914
1189
1350
W
120
140
160
160
180
200
200
250
250
300
350
400
450
500
550
600
Weight(kg)
5.2
7.1
7.4
8.5
13
20
25
35
50
75
100
210
446
648
805
1050

Pressure
(Mpa)
PN 2.5 Mpa
Size
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
1100
H
240
260
276
285
300
325
363
415
453
505
556
744
864
948
1269
1450
W
120
140
160
160
180
200
200
250
300
350
400
450
500
550
600
600
Weight(kg)
6
7.5
8
9
14
22
27
38
55
82
105
220
450
660
810
1100

Pressure
(Mpa)
PN 4.0 Mpa
Size
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
1100
H
240
260
276
285
300
325
370
430
480
532
589
783
888
965
1285
1512
W
120
140
160
160
180
200
200
250
300
350
400
450
500
550
600
600
Weight(kg)
6
7.5
8
9
15
24
30
41
60
85
110
225
460
670
830
1120
