Products>DIN F1 Lift Check Valve

Features:
DIN F1 LIFT CHECK VALVE
Technical specificastion

Structural Formation	BB-BG-OS & Y
Driving Manner	Hand-Operated
Driving Manner	Electric-Actuated
Design Standard	DIN3356
Face to Face	DIN3202
Flange Ends	DIN2543-2547
Test & Inspection	DIN3230

Notes:The size of serial,valve connecting flange can be design according to customers reāguirment.
Products performance specification

Nominal Pressure (Mpa)	Shell Test(Mpa)	Sealing Test(Mpa)	Suitable Temp(oC)	Suitable Medium
1.6	2.4	1.76	-110~600 oC	Water Oil & Gas
2.5	3.75	2.75
4.0	6.0	4.4
6.4	9.6	7.04

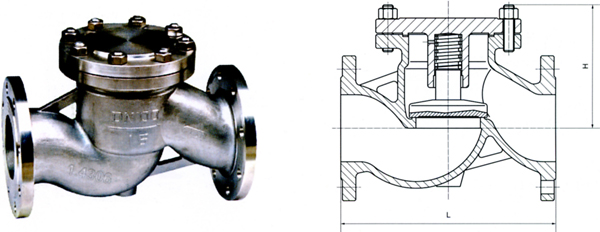

Main Dimensions unit:mm

Pressure (Mpa)	PN 1.6 Mpa
Size	50	ā 65	80	100	125	150	200	250	300	350	400
L	230	ā 290	310	350	400	480	600	730	850	980	1100
H	305	ā 354	402	437	496	541	699	815	914	1189	1350
Weight(kg)	10	20	30	39	50	70	161	251	395	500	618

Pressure (Mpa)	PN 2.5 Mpa
Size	50	65	80	100	125	150	200	250	300	350	400
L	230	290	310	350	400	480	600	730	850	980	1100
H	325	363	415	453	505	556	744	864	ā948	1269	1450
Weight(kg)	12	22	33	44	55	78	180	270	410	520	650

Pressure (Mpa)	PN 4.0 Mpa
Size	50	65	80	100 <ātd>	125	150	200	250	300	350	400
L	230	290	310	350 ā	400	480	600	730	850	980	1100
H	325	370	430	480 ā	532	589	783	888	965	1285	1512
Weight(kg)	13	23	34	46	60	85	190	280	430	550	680
