Products>DIN F2 Globe Valve

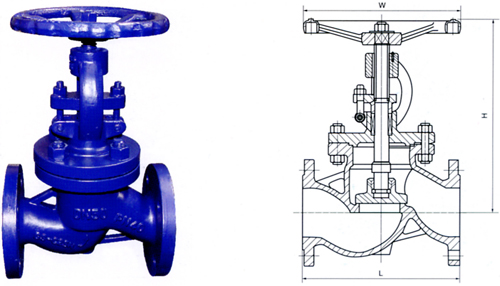

DIN F2 Globe Valve
Features:
DIN F2 GLOBE VALVE
Technical specificastion

 Structural Formation
BB-BG-OS & Y
Driving Manner
Hand-Operated
Electric-Actuated
Design Standard
DIN3356
Face to Face
DIN3202
Flange Ends
DIN2543-2545
Test & Inspection
DIN3230
Notes:The size of serial,valve connecting flange can be design according to customers reguirment.
Products performance specification

Nominal Pressure
(Mpa)
Shell Test(Mpa)
Sealing Test(Mpa)
Suitable Temp(oC)
Suitable Medium
1.6
2.4
1.76
-110~600 oC
Water Oil & Gas
2.5
3.75
2.75
4.0
6.0
4.4
6.4
9.6
7.04

Main Dimensions                                                                                                                                 unit:mm

Pressure
(Mpa)
PN 6.4 Mpa
Size
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
200
300
340
380
430
500
550
650
775
900
1025
1150
H
240
260
276
285
300
305
354
402
437
496
541
699
815
914
1189
1350
W
120
140
160
160
180
200
200
250
250
300
350
400
450
500
550
600
Weight(kg)
8
10
12
16
17
26
33
45
65
90
120
230
470
680
850
1130

Pressure
(Mpa)
PN 10.0 Mpa
Size
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
200
300
340
380
450
500
550
650
775
900
1025
1250
H
240
260
276
285
300
325
363
415
453
505
556
744
864
948
1269
1450
W
120
140
160
160
180
200
200
250
300
350
400
450
500
550
600
600
Weight(kg)
8
10
13
17
19
27
34
46
67
95
125
235
480
690
860
1150

Pressure
(Mpa)
PN 16.0 Mpa
Size
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
130
150
160
180
200
300
340
380
450
500
550
650
775
900
1025
1250
H
240
260
276
285
300
325
370
430
480
532
589
783
888
965
1285
1512
W
120
140
160
160
180
200
200
250
300
350
400
450
500
550
600
600
Weight(kg)
8
10
13
17
20
28
35
49
70
100
130
245
490
710
890
1190
