DIN F5 RISING STEM GATE VALVE
Technical specificastion

Structural Formation	BB-BG-OS & Y
Driving Manner	Hand-Operated
Driving Manner	Electric-Actuated
Design Standard	DIN3352
Face to Face	DIN3202
Flange Ends	DIN2543-2547
Test & Inspection	DIN3230

Notes:The size of serial,valve connecting flange can be design according to customers reguirment.
Products performance specification

Nominal Pressure (Mpa)	Shell Test(Mpa)	Sealing Test(Mpa)	Suitable Temp(oC)	Suitable Medium
1.6	2.4	1.76	-110~600 oC	Water Oil & Gas
2.5	3.75	2.75
4.0	6.0	4.4
6.4	9.6	7.04

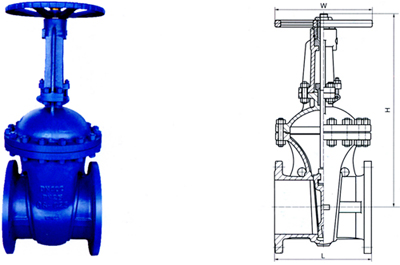

Main Dimensions unit:mm

Pressure (Mpa)	PN 1.6 Mpa
Size	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	250	270	280	300	325	350	400	450	500	550	600	650	700	800
H	417	452	430	607	720	790	885	1014	1190	1350	1460	1630	1800	2200
W	200	280	280	300	350	350	400	450	500	600	600	650	700	800
Weight(kg)	16	25	30	55	75	98	150	245	353	490	750	985	1063	1390

Pressure (Mpa)	PN 2.5 Mpa
Size	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	250	270	280	300	325	350	400	450	500	550	600	650	700	800
H	417	452	430	607	720	790	885	1014	1190	1350	1460	1630	1800	2200
W	200	280	280	300	350	350	400	450	500	600	600	650	700	800
Weight(kg)	16	31	43	58	82	103	180	265	385	547	835	1050	1130	1500
