Products>Three Piece Thread Ball Valve

Features:

Three Piece Thread Ball Valve

Applicable Standards

Working Pressure: 150PSl
Temperature Range: -20~232~-350 0C
Suitable medium: Water,Oil,air and some Corrosive liqid
Thread type:G.NPT.BSPT.BSP.DIN259/2999

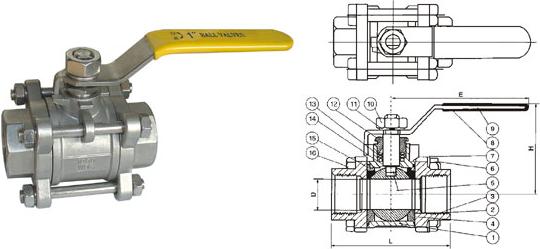

Main Parts and Materials

NO.	Part Name	Material
NO.	Part Name	Stainless steel	Carbon steel
1	Body	304/316	WCB
2	Joint ring	PTFE	PTFE
3	Cap	304/316	WCB
4	Ball	304/316	304/316
5	Stem	304/316	304/316
6	Nut	304	FCD45
7	Washer	304	FCD45
8	Handle cover	Plastic	Plastic
9	Handle	304	304
10	Stem nut	304	B7
11	Stem washer	304	304
12	Gland nut	304	FCD45
13	Stem packing	PTFE	PTFE
14	Thrust washer	PTFE	PTFE
15	Joint gasket	PTFE	PTFE
16	Bolt	304	B8

Main Dimensions unit:mm

SIZE	1/4"	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"
D	11.6	12.7	15	20	25	32	38	50	65	80	100
L	68	68	72	85	90	112	120	145	185	210	268
H	100	100	130	130	165	165	190	190	250	250	280
E	100	100	130	130	165	165	190	190	250	250	280
WT(g)	400	405	640	890	1160	2195	2940	4860	7000	10700	19350
