Products>Y Strainer

Features:

Y-Strainer

Design and Manufacture: HG/T 21637
Face to face(end to end): GB/T 12221
Flanged connection: JB/T 79
Test and inspection:GB/T 12220

 Specification:

Model
Connection

PN(MPa)
Sealing Test(MPa)
Working Pressure
(Mpa)
Shell Material
Filter Material
Area for meshs
SY4P-10
Flange
1.0
1.1
1.0
Gray Iron
Stainless Steel
3~4DN
SY1P-10
FNPT
SY4P-16
Flange
1.6
1.76

1.6
Ductile Cast Iron
SY1P-16
FNPT
SY4P-25
Flange
2.5
2.75
2.5
Carbon Steel
SY1P-25
FNPT

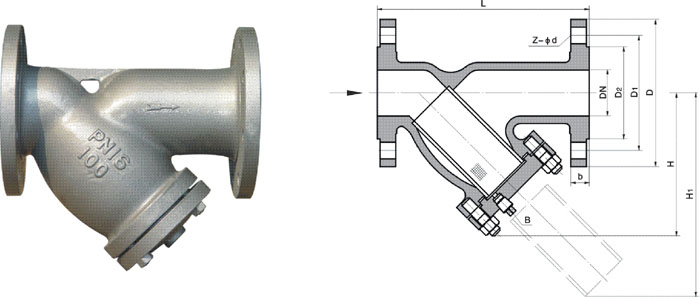

 Dimension:

DN(mm)
Dimension(mm)
L
D
D1
D2
b
z-d
15
140
95
65
45
14
4-14
20
150
105
75
55
14
4-14
25
160
115
85
65
14
4-14
32
180
140
100
78
16
4-18
40
200
150
110
85
16
4-18
50
200
150
110
85
16
4-18
65
255
185
145
120
18
4-18
80
285
200
160
135
20
8-18
100
340
220
180
155
20
8-18
125
380
250
210
185
22
8-18
150
450
285
240
210
24
8-23
200
540
340
295
265
26
12-23
250
610
405
355
320
30
12-26
300
690
460
410
375
34
16-26
350
785
520
470
435
34
16-26
400
840
580
525
485
36
16-30
450
940
640
585
535
44
20-30
500
1000
715
650
608
48
20-34
